OEX Alternator 12V 85A – DXA4056

Previous Product | Next Product
Product Description
Usually Ships Within 1 Business Day
$469.00 $597.00
Maximum quantity available reached.

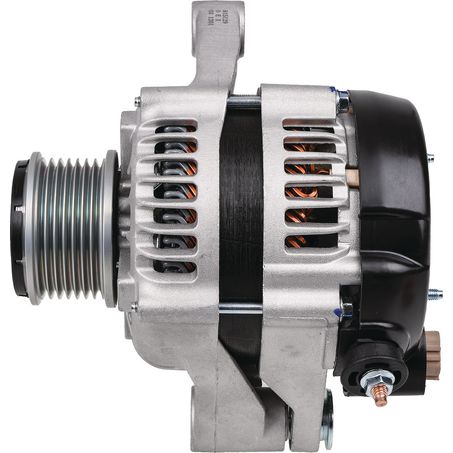

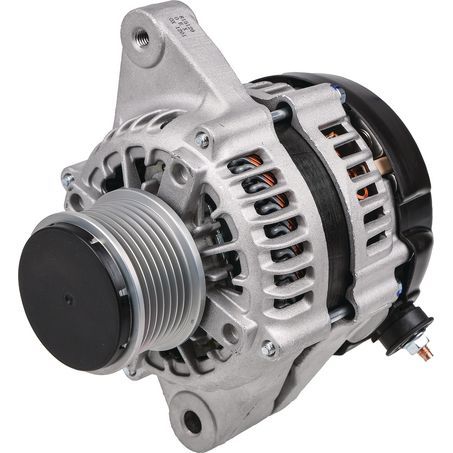

The OEX DXA4056 is a high-quality 12V, 85A alternator, built to OE Denso specifications and designed as a direct-fit replacement for a wide range of Toyota diesel vans, utes, and cab chassis. It is ideal for both fleet and private vehicles operating in tough New Zealand conditions. If upgrading from 85A to 130A or 160A, it is recommended to also upgrade the battery cable and fuse between alternator and battery for optimal performance and safety.

Features:

  • 85A output for stable charging and reliability

  • Built to Denso OE specifications

  • Internal regulator (IR115)

  • 7-groove pulley, single leg mount

  • Brand new – not a reconditioned unit

  • Robust OEX NZ warranty: 3 years passenger / 1 year commercial

Fitment Note:
If replacing the 85A alternator with a higher output 130A or 160A unit, upgrade battery cable and fuse as recommended.

Specifications:

  • Voltage: 12V

  • Amperage: 85A

  • Pulley: 7 groove

  • Pulley Diameter: 58mm

  • Mount Centres: 163mm

  • Mount Type: Single leg

  • Thread: M8 x 1.25

  • Weight: 4.5kg

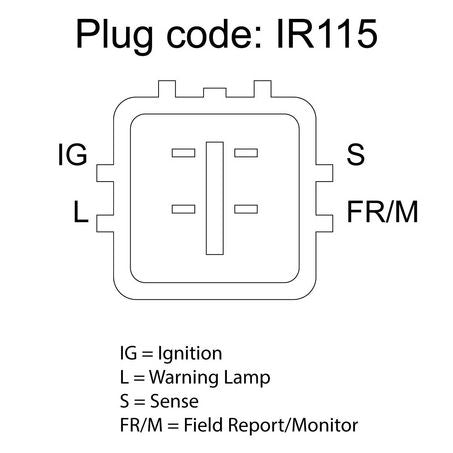

  • Regulator: Internal (IR115)

  • Condition: New

OEM Part No.:
27060-30080, 27060-30100, 27060-30110, 27060-30120, 27060-30130 (confirm fitment with your vehicle/build plate)

Fits:

  • Toyota Camroad KDY230 2.5L 2KD-FTV Diesel Cab Chassis RWD [08/04–07/07]

  • Toyota Commuter, Hiace KDH202, KDH212, KDH222 V D-4D 2.5L 2KD-FTV DOHC 16v Turbo Diesel 80kW Bus RWD [09/06–12/06]

  • Toyota Commuter, Hiace KDH203R, KDH221, KDH22… V D 3.0L 1KD-FTV DOHC 16v Turbo Diesel 80kW Bus RWD [08/04–01/19]

  • Toyota Commuter, Hiace KDH223 V D 3.0L 1KD-FTV DOHC 16v Turbo Diesel 100kW Bus RWD [05/10–12/14]

  • Toyota Hiace KDH200, KDH220 V D-4D 2.5L 2KD-FTV DOHC 16v Turbo Diesel 75kW Van RWD [01/05–09/06]

  • Toyota Hiace KDH200, KDH220 V D-4D 2.5L 2KD-FTV DOHC 16v Turbo Diesel 80kW Van RWD [09/06–07/10]

  • Toyota Hiace KDH200, KDH223 V D 3.0L 1KD-FTV DOHC 16v Turbo Diesel 75kW Van RWD [01/05–01/19]

  • Toyota Hiace KDH201, KDH221 V D 3.0L 1KD-FTV DOHC 16v Turbo Diesel 100kW Van RWD [08/07–01/19]

  • Toyota Hiace KDH201, KDH221 V D 3.0L 1KD-FTV DOHC 16v Turbo Diesel 80kW Van RWD [11/06–01/19]

  • Toyota Hiace KDH206 V D 3.0L 1KD-FTV DOHC 16v Turbo Diesel 100kW Van AWD [09/07–11/08]

  • Toyota Hiace KDH206 V D 3.0L 1KD-FTV DOHC 16v Turbo Diesel 106kW Van AWD [11/08–05/19]

  • Toyota Hilux KUN16 VII D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel 120kW Cab Chassis RWD [02/05–08/06]

  • Toyota Hilux KUN16 VII D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel 126kW Utility RWD [08/06–05/15]

  • Toyota Hilux KUN16, KUN36 VII D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel 120kW Utility RWD [08/05–05/15]

  • Toyota Hilux KUN16R VII D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel 126kW Cab Chassis RWD [08/06–06/15]

  • Toyota Hilux KUN26 VII D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel 120kW Cab Chassis AWD [02/05–08/06]

  • Toyota Hilux KUN26 VII D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel 120kW Utility AWD [03/05–08/06]

  • Toyota Hilux KUN26 VII D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel 126kW Cab Chassis AWD [08/06–09/15]

  • Toyota Hilux KUN26 VII D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel 126kW Utility AWD [08/05–09/15]

  • Toyota Regius Ace KDH200 D-4D 2.5L 2KD-FTV DOHC 16v Turbo Diesel 80kW Bus RWD [08/04–On]

  • Toyota Regius Ace KDH200 D-4D 2.5L 2KD-FTV DOHC 16v Turbo Diesel 80kW Van RWD [08/04–12/20]

  • Toyota Toyoace KDY221, KDY231, KDY241 DiD 3.0L 1KD-FTV DOHC 16v Turbo Diesel 106kW Cab Chassis RWD [09/07–On]

Sku: NP-DXA4056
Vendor: OEX
